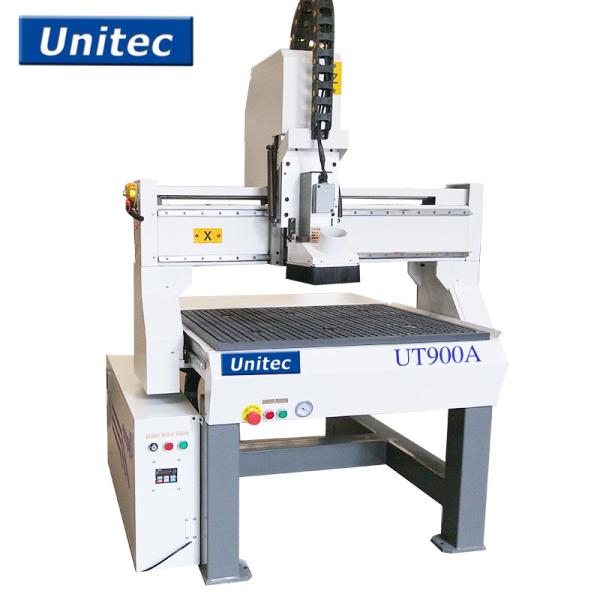

UT900A high precision cnc router 600 x 900 cnc router 4 axis 6090
Application
1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Decoration industries: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Highlights
- Integral welded frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
- Various of table styles make convenient clamping materials and improves overall production efficiency;
- Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
- Main configurations adopts imported accessories which will ensure the overall running performance.
- Optional mister cooling system ensure the processing bits life
- Strict compliance with CE electrical standards for circuit design and production, and all
- Parts have safe and reliable protection device.
Technical parameters
| Working Size | 900X700X150mm |
| Table Size | 900X700mm |
| Transmission Type | XYZ ball screw |
| Guide Rail | Linear guide |
| Table Type | Vacuum |
| Vacuum pump | 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 1.5KW China Air Cool Spindle |
| Spindle Speed | 24000rpm |
| Max Travel Speed | 6000mm/min |
| Max Working Speed | 5000mm/min |
| Motor | China Stepper Motor |
| Work Voltage | AC220V 50HZ |
| Controller System | Ncstudio / MACH3/DSP |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G Code/PLT Code |
| Overall Weight | 600KG |
| Overall Dimension | 1350*1220*1900 |
Applications and Materials
Fixture Industry: Aluminum panel, Copper, Aluminum Composite Panel and some soft metal etc. Crafts Industry: Wood, Artificial Stone, Marble, Sandstone, Bamboo, PVC, Acrylic, Double Color board
Inner quality control system
- In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
- Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
- 18 months guarantee of the whole machine.
- Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
- Lifetime maintenance free of charge.
- We will provide the consumable parts at an agency price when you need replacement.
- Machine has been adjusted before delivery.
- Our staff can be sent to your company to install or adjust if necessary.
Certificate
-
CE certificated for European countries
-
CCVO SONCAP certificated for Nigeria customers
-
FTA certificate for Pakistan customers
-
SASO certificate for Saudi Arabic customers
-
Form E certificate for Indonesia and Vietname customers
Packaging & Delivery
Packaging Details:
- Outside package: Standard marine export plywood case.
- Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment
UT900AUT900A
